Shuttle DH810 Intel 15th Gen Core Ultra Series (Coming Soon)

Contact us for more information $625.00

Shuttle DH810 is a 1.3L robust PC that harnesses the power of Intel® Core™ Ultra LGA1851 processors. With support of up to 96GB of DDR5-5600MHz RAM in dual-channel mode and integrated Intel® Graphics, DH810 ensures seamless multitasking and rapid data processing, making it ideal for commercial tasks and demanding AI workloads. The DH810 supports up to 8K resolution via HDMI, along with triple independent 4K display, delivering a stunning visual experience for Pro AV applications, including digital signage and entertainment.

Processor	Intel® Core™ Ultra 200 series LGA1851 processors, TDP up to 65W
Chipset	Intel H810 Express chipset
System Memory	2 x DDR5 SODIMM slots,48GB per DIMM (Max 96GB) DDR5 5600 MHz
Video Output	(1) HDMI 2.1 (TMDS) (2) DP (Include 1 form USB 4.0 port) Triple video outputs 4K playback (Dual channel memory recommended) Integrated in CPU
Audio	Realtek High Definition Audio
Ethernet	(1)Intel GbE Lan / (1)2.5 GbE Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function Support Teaming function
Storage Interface	SATA 6.0Gb/s interface
Onboard Connectors	(1) 4pin fan connector (1) VGA(For PVG01 use) (1) 1x4 pin USB header(For WWN03 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header (1) RS232 voltage switch
OS Support	Windows 11 64 bit O.S Linux

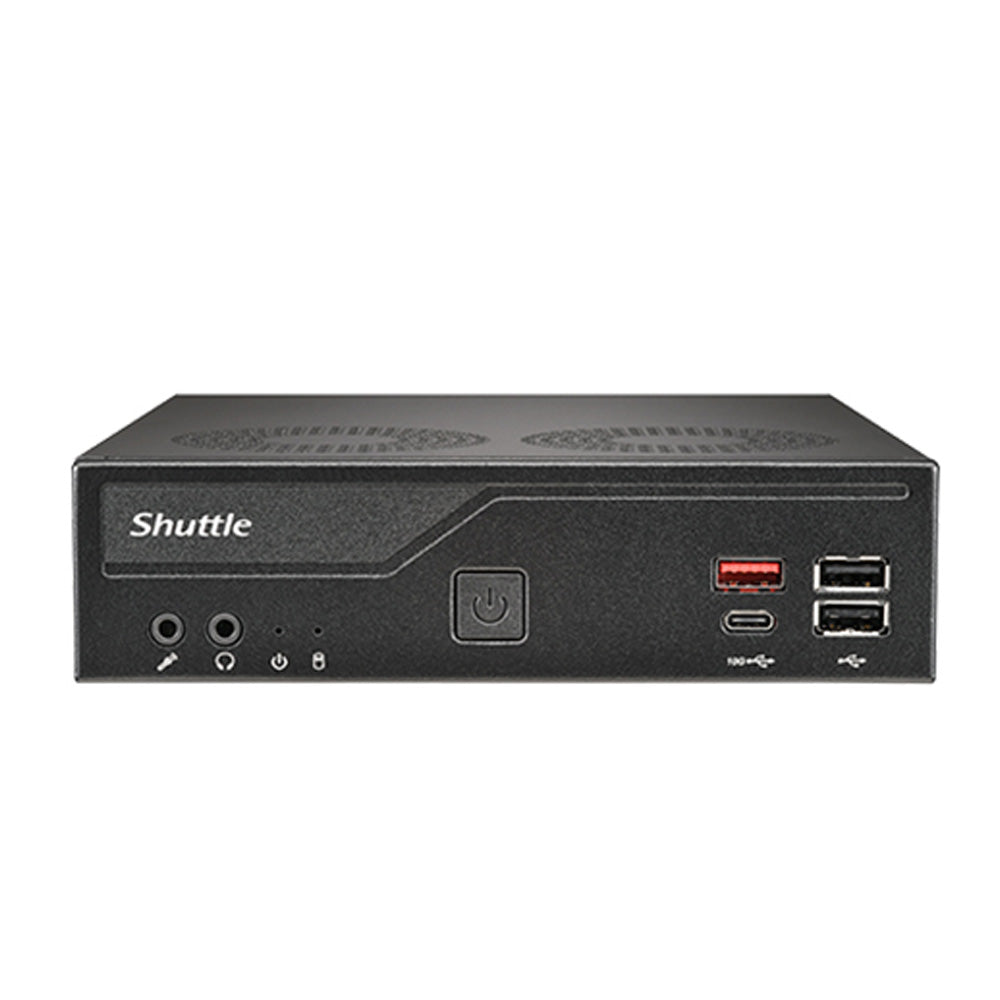

Front Panel	(2) USB 3.2 Gen1 ports (Include Type C x1) (2) USB 2.0 ports (1) Microphone-In (1) Line-Out (1) Power-On button (1) Power LED (1) HDD LED

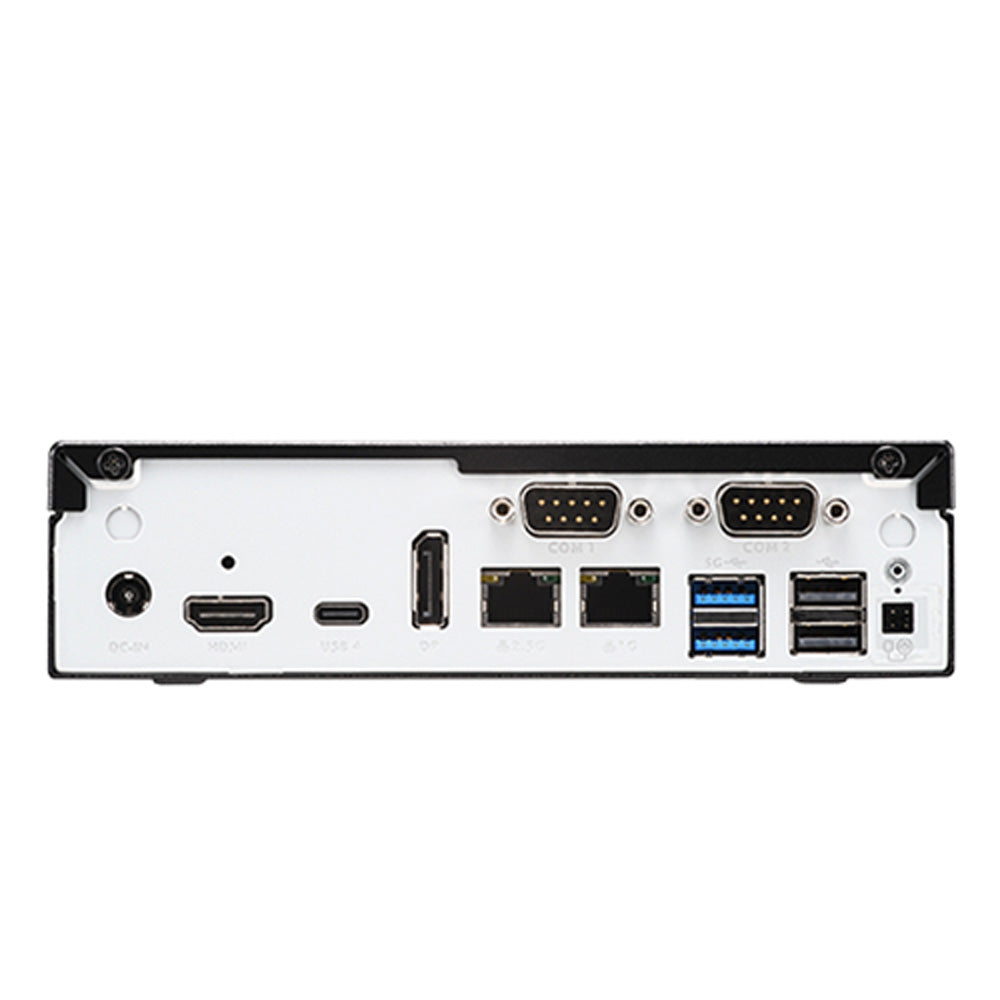

Back Panel	(2) RJ45 LAN port w/LED (2.5G (1) HDMI port (1) Display port (2) USB 3.2 Gen1 ports (2) USB 3.2 Gen2 ports (1) USB 4.0 (20G, Type-C, with DP) (1) RS232 (1) RS232/RS422/RS485 (1) External 4pin header (1) DC-in (2) Wireless Antenna fixture (1) Kensington lock
Expansion Slot	(1) M.2 2280 Type M key socket (1) M.2 2230 Type E key socket
Dimensions	190(L) x 165(W) x 43(H) mm
Drive Bays	(1) 2.5" HDD / SSD bay
