DH610 Intel 12th/13th/14th Gen Core i3/i5/i7, Pentium, Celeron

  • Shuttle XPC Slim series DH610 supports Intel® 12th/13th/14th Gen LGA1700 processors. With Intel® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.

  • Processor

    Support 12/13/14th Gen LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor


    Intel H610 Express chipset

    System Memory

    2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
    DDR4 up to 3200 MHz

    Video Output

    HDMI 2.0 + DisplayPort x2, Triple Video Outputs
    4K playback (Dual channel memory recommended)
    Integrated in CPU


    Realtek High Definition Audio


    (1)Intel GbE Lan / (1)2.5 GbE Lan
    10Mb/s,100Mb/s,1Gb/s operation
    Support Wake-On-LAN function
    Support Teaming function

    Storage Interface

    SATA 6.0Gb/s interface

    Onboard Connectors

    (1) 4pin fan connector
    (1) VGA(For PVG01 use)
    (1) 1x4 pin USB header(For WWN03 use)
    (1) SATA connector w/power
    (1) Front audio header
    (1) Auto power on header
    (1) RS232 voltage switch

    OS Support

    Windows 10/11 64 bit O.S

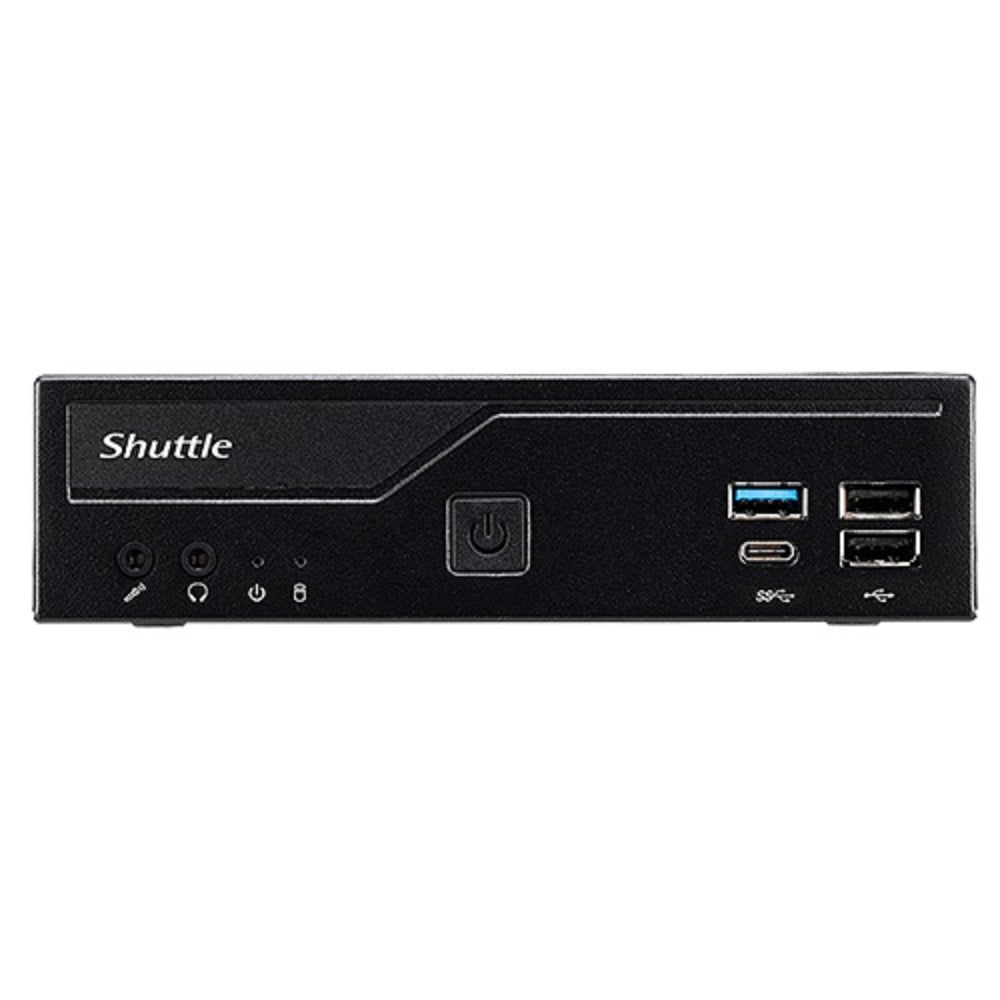

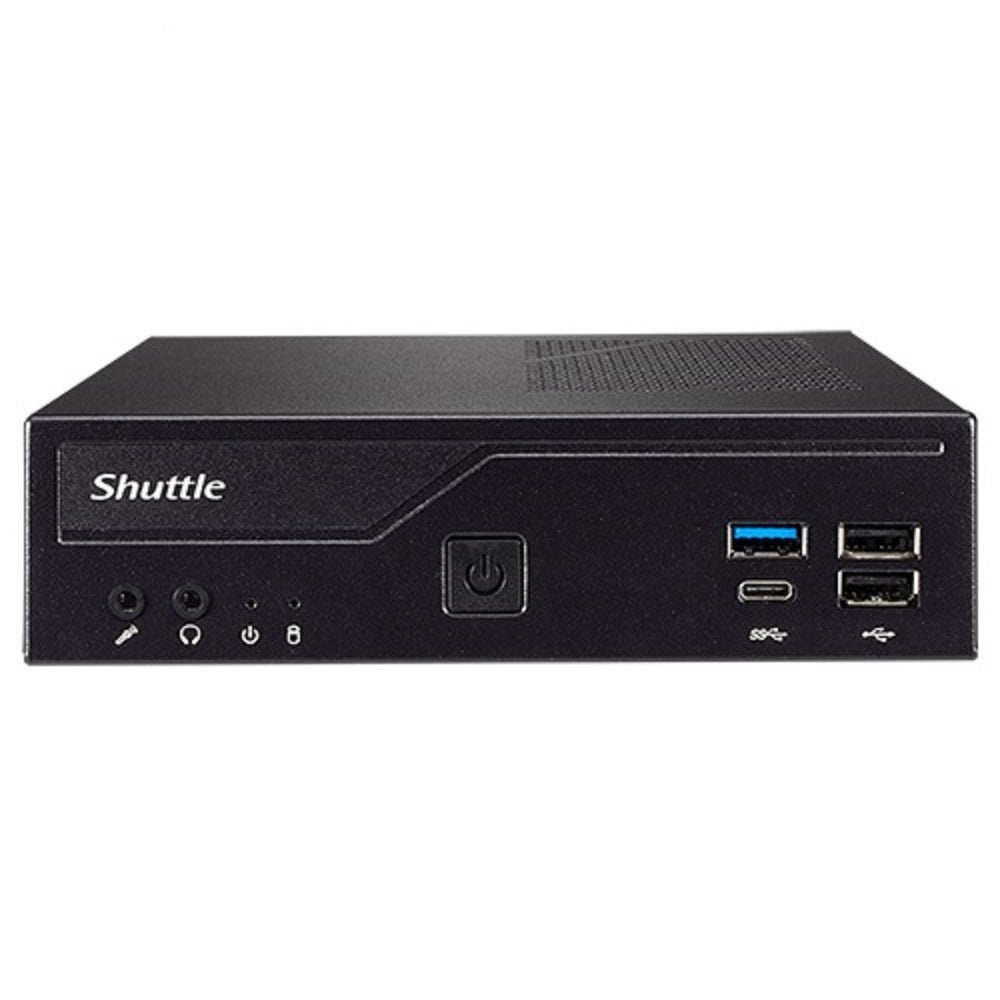

  • Front Panel

    (2) USB 3.2 Gen1 ports
    (Include Type C x1)
    (2) USB 2.0 ports
    (1) Microphone-In
    (1) Line-Out
    (1) Power-On button
    (1) Power LED
    (1) HDD LED

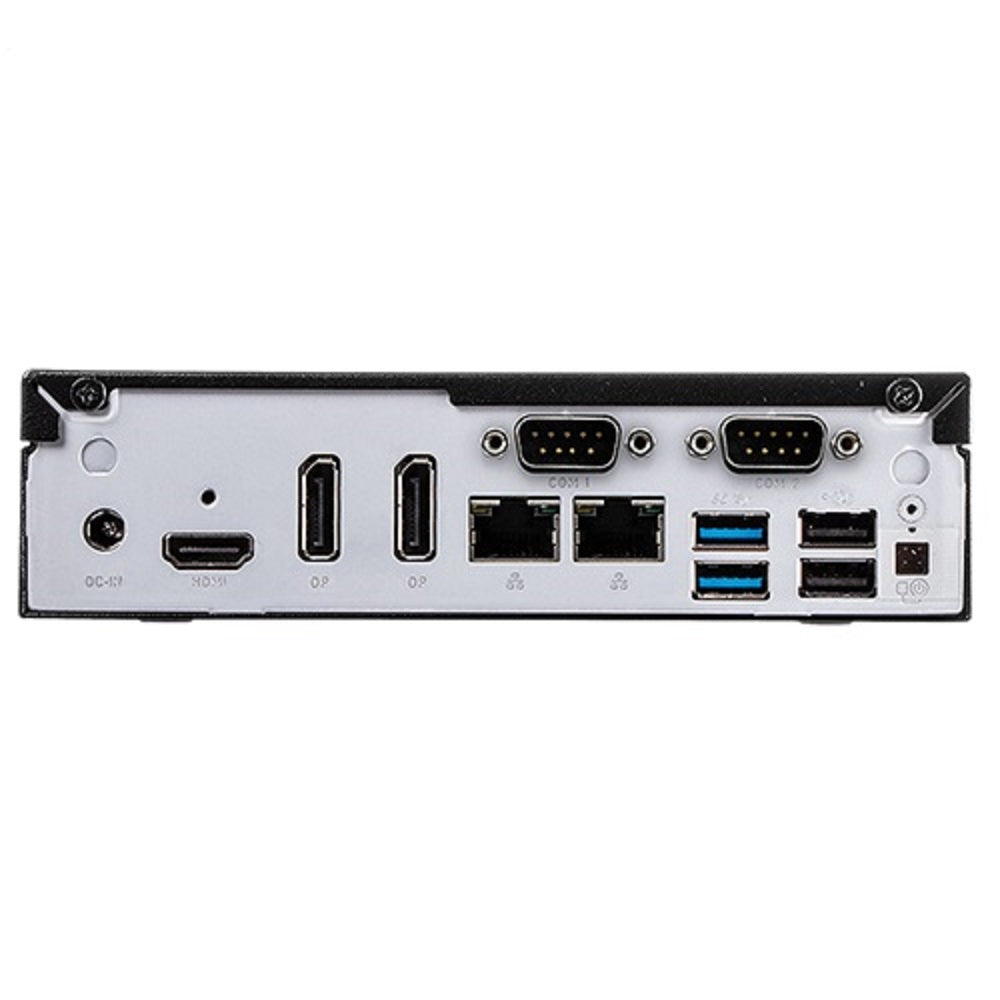

    Back Panel

    (2) RJ45 Gigabit LAN port w/LED
    (1) HDMI port
    (2) Display port
    (2) USB 3.2 Gen1 ports
    (2) USB 2.0 ports
    (1) RS232
    (1) RS232/RS422/RS485
    (1) External 4pin header
    (1) DC-in
    (2) Wireless Antenna fixture
    (1) Kensington lock

    Expansion Slot

    (1) M.2 2280 Type M key socket
    (1) M.2 2230 Type E key socket

    Dimensions 190(L) x 165(W) x 43(H) mm
    Drive Bays

    (1) 2.5" HDD / SSD bay

    • XPC Multilanguage Quick User Guide
    • XPC DVD Driver
    • VESA mount
    • VESA Screw pack
    • Power cord
    • Thermal Grease
    • HDD Screw pack
    • 120W adapter
