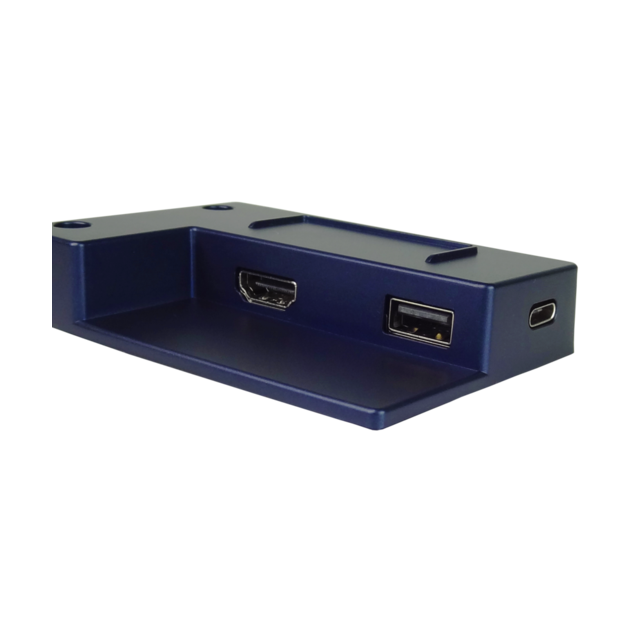

Rear Dock


The On-Lap 1503H/I/A&1102 series has pioneered a Rear Dock port integrating touch, power, and video signals on the rear of the monitor. Plug the Rear Dock into the dock port and insert a Compute Stick into it, and the 1503H/I/A&1102turns into an AIO in a moment. Likewise, inserting an HDMI wireless display adapter or TV stick can create a unique entertainment center!

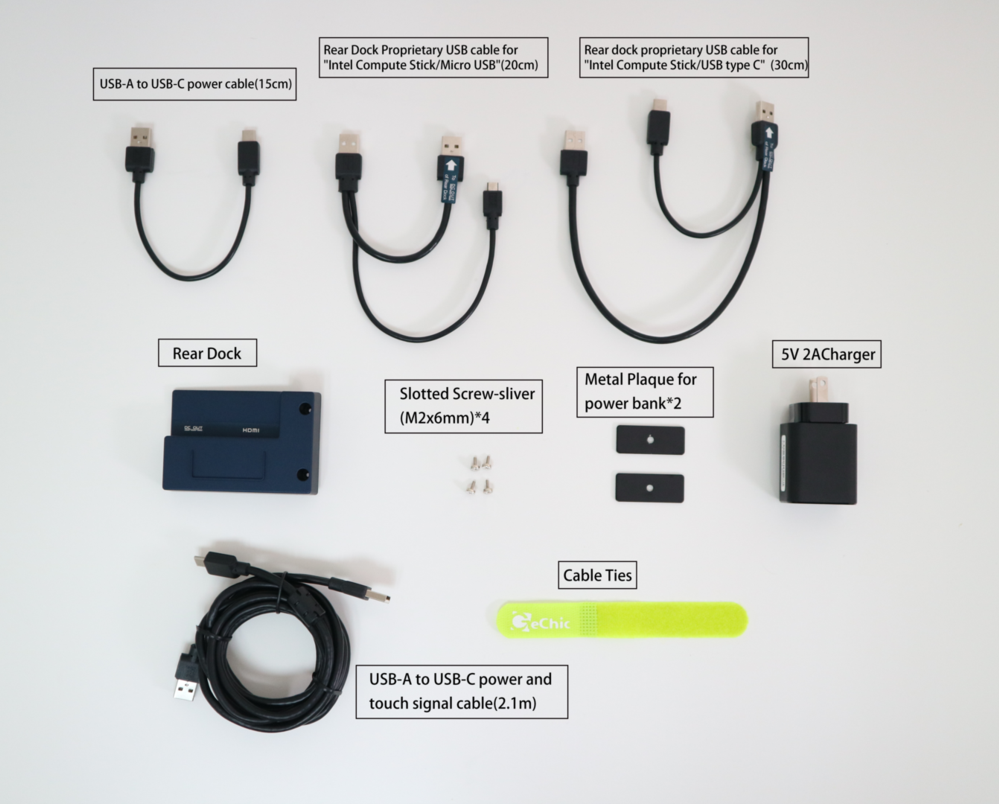

  • USB-A to USB-C Power& Touch Signal Cable(2.1m)*1
    Rear Dock Proprietary USB cable for "Intel Compute Stick/Micro USB"(20cm)*1
    Rear dock proprietary USB cable for "Intel Compute Stick/USB type C"  (30cm) *1
    USB-A to USB-C Power Cable (15cm)*1
    5V 2A Adapter*1
    Metal Plaque for power bank* 2
    Slotted Screw-sliver (M2 x 6mm)* 4

On-Lap 1503H/I/A, 1102 series

PC/Device: HDMI-A*1(female), USB-A*1(female), USB-C*1(female)
*Suitable for TV stick, Compute Stick, and power bank
On-Lap Monitor: On-Lap1503, 1102 Rear Dock connector

Dimension: 91mm x 61mm x 18mm


    *We adopt high quality material for the cable. Use Gechic OEM cable for On-Lap monitor to avoid any issue while transmission of the signal.
