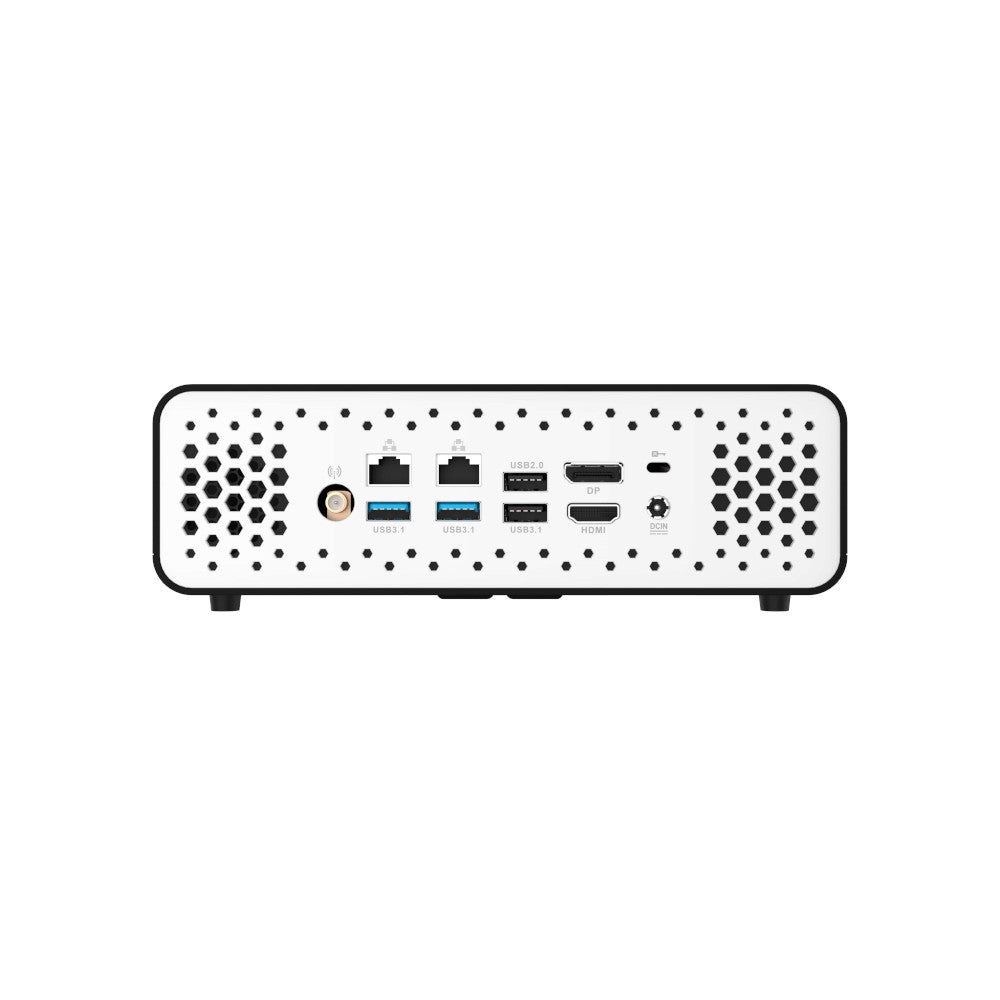

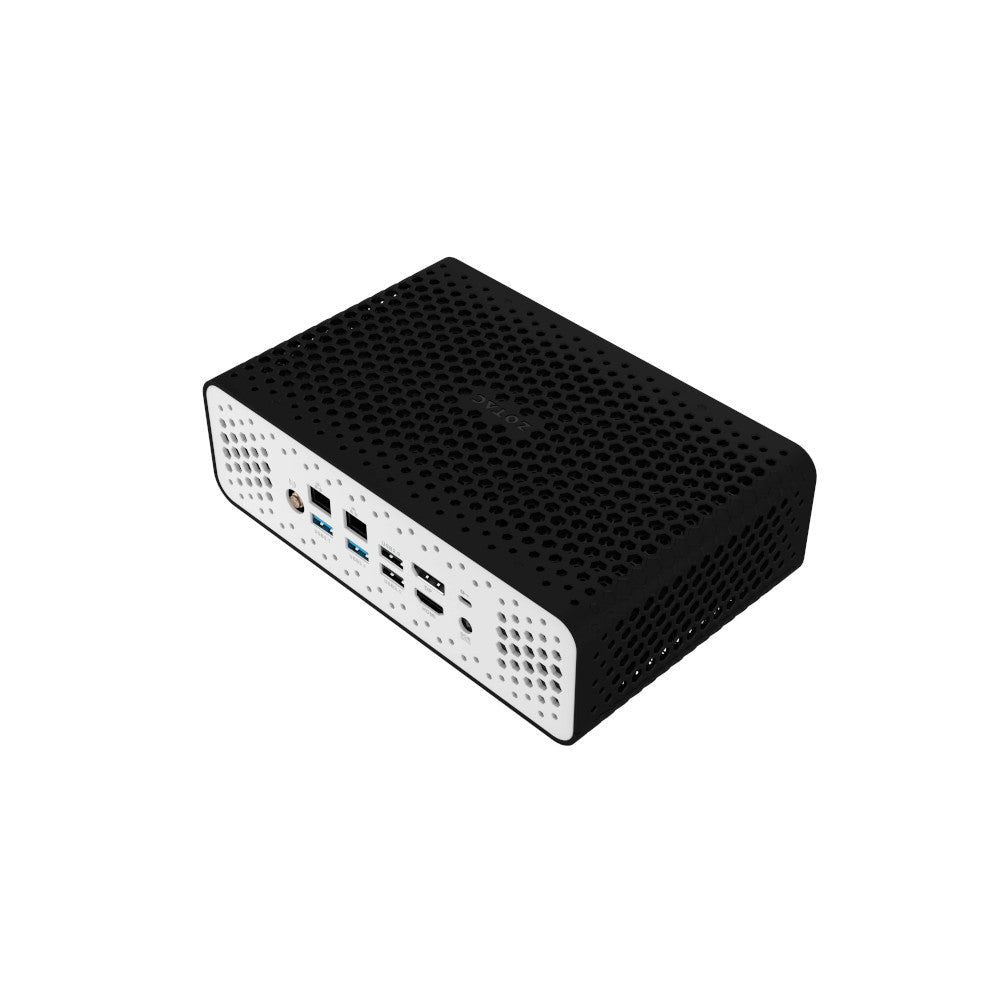

CI645 NANO (Bare Bone)

  • An award-winning honeycomb design complete with an entirely fanless operation, the ZBOX C Series nano packs more powerful and more capable hardware with the latest 11th Gen Intel® Core™ processor integrated with the powerful Iris® Xe graphics. The ZBOX CI645 nano pushes performance beyond the compact body with support for fast 3200 MHz DDR4 memory, M.2 PCIe x4 SSD, Thunderbolt 4, USB 3.1 supporting up to 10Gbps super-speed data transfers, HDMI 2.0, and DisplayPort 1.4 for up to 4K resolution at 60 Hz. Its diminutive size allows nimble placement in space limited environments, making it an ideal home theater PC, digital signage, home office, office work space, and more.
  • Processor
    • Intel Core i5-1135G7 (quad-core 2.4GHz, up to 4.2GHz)
    • Intel
    System Memory
    • 2 x DDR4-3200/2666 SODIMM Slot (up to 64GB)
    Graphics Engine
    • Intel Iris Xe Graphics (Integrated)
    Video Output
    • HDMI 2.0 (up to 3840x2160@60Hz)
    • DisplayPort 1.4 (up to 4096X2160@60Hz)
    Hard Drive
    • 1 x 2.5" SATA 6Gbps HDD/SSD Slot
    • 1 x M.2 2230/2242 PCIe x4 SSD slot (NVMe Support)
    Card Reader
    • 3-in-1 (SD/SDHC/SDXC)
    Supported OS
    • Windows 10/11 64-bit ready
    • 2 x WiFi antenna
    • 1 x VESA mount (with 4 screws)
    • AC Adapter
    • Power Cord
    • Warranty Card
    • User Manual
    • Quick Install Guide
    • USB drive with O/S driver
