$569.00
High Durability & Flawless Functionality

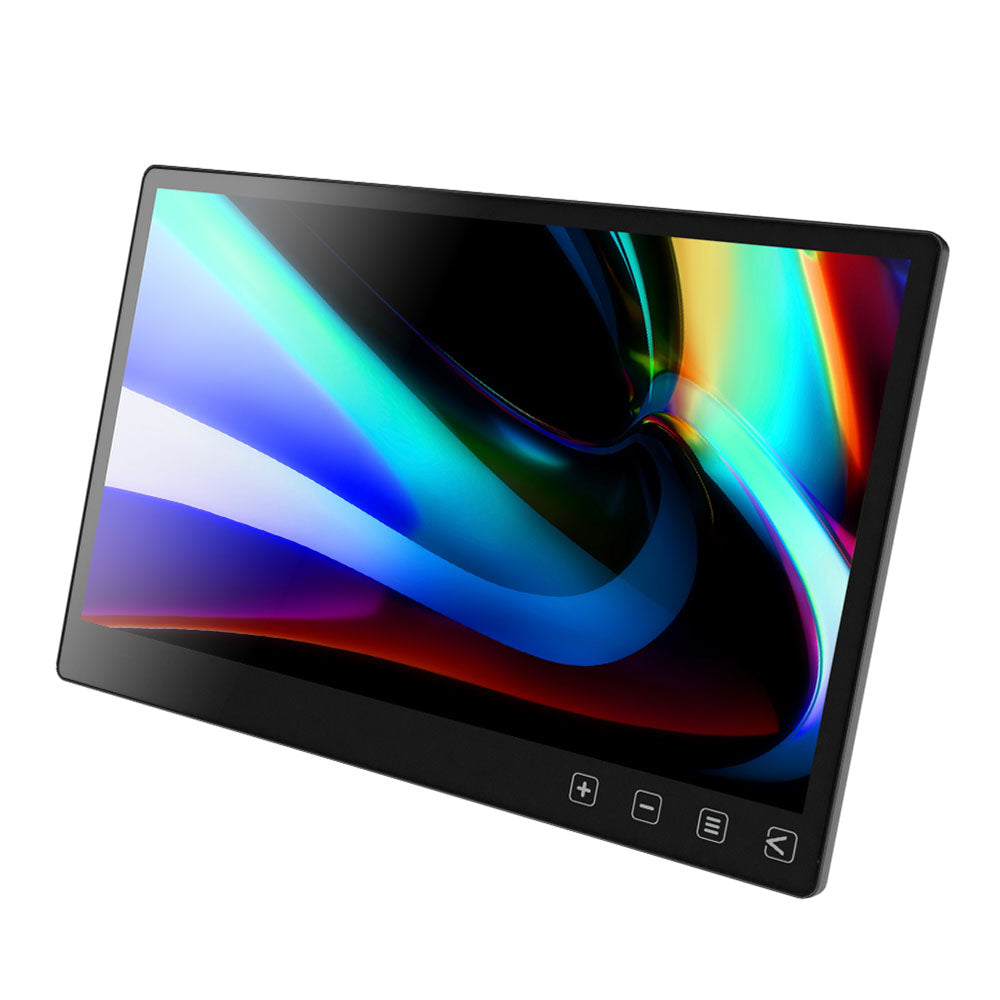

15.6" GeChic T151A Touch Monitor

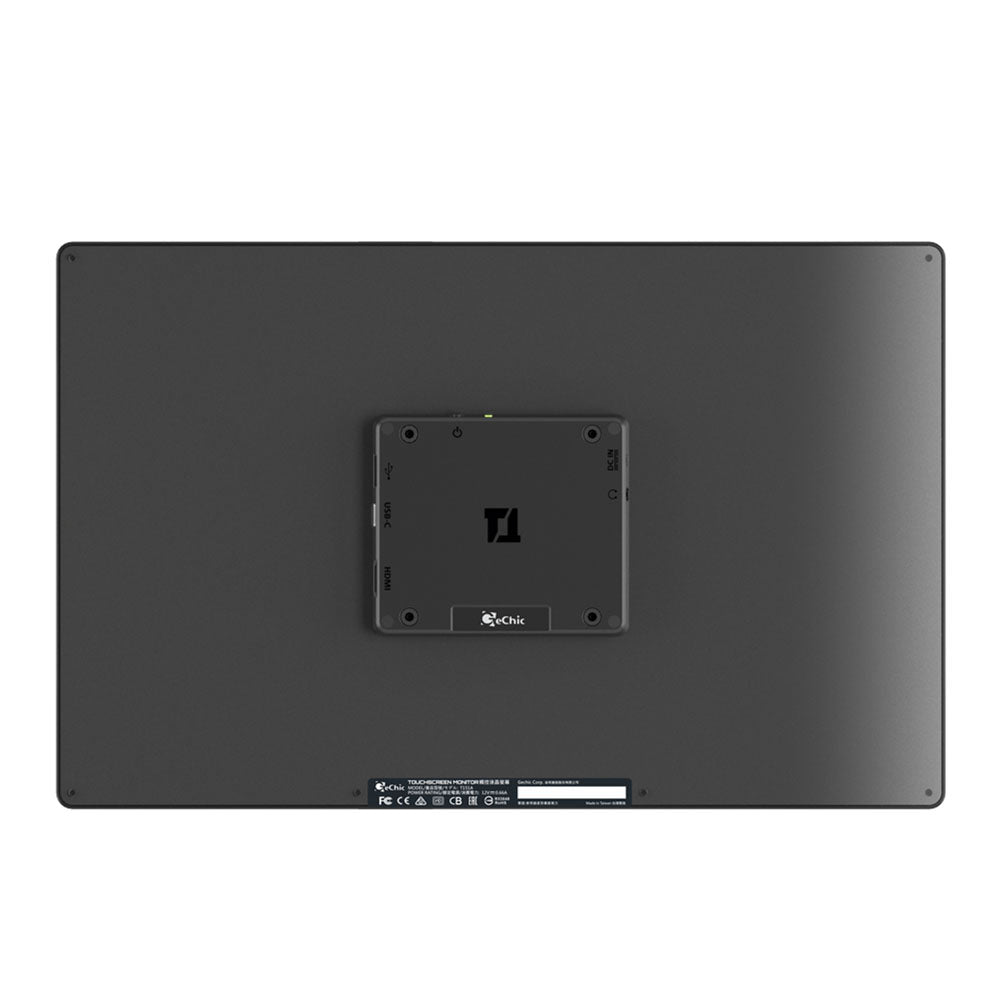

The monitor is designed by solid and reliable structure. The front touch panel is covered with 7H high-hardness glass featuring the advantage of scratch resistance, dirt resistance and easy cleaning; the back is made of light and high-strength aluminum alloy backplane. The monitor integrates the ports and VESA screw mounting holes on the rear I/O block within only 11mm thickness. The monitor is not only with slim and high-tech appearance meeting commercial needs, but also with strong durability in line with industrial requirements, which makes the monitor well-suited for production line, machine room and commercial space.
| Panel |
15.6” (16:9) wide |
| Brightness |
250(cd/m2)(Typical) |
|
Screen Hardness & Thickness |
Screen Surface ≧ 7H,Screen Thickness 1.1mm |
| Resolution |
1920 x1080 |
|
Active Area |
344mm*194mm (WxH)
|
| Pixel Pitch |
0.179mm (H) *0.179mm (V) |
| Color Depth |
16.7M Colors |
|
Touch Screen |
Projective capacitive touch glass 10 detections |
|
Input Sensitivity |
Finger or passive stylus( Diameter of Touch Point ≧ 6.0mm) |
|
Touch Points |
10-point multi-touch |
| Viewing Angle |
170°(H)/170°(V)(CR>10) |
| Contrast Ratio |
700:1(Typical) |
| Response Time (GTG) |
15(ms)(Typical) |
| Audio Output |
Earphone jack3.5mm mini jack*1 (Please note that this unit has no speakers) |
| Operation System |
Windows 10, Windows 11 |
| Video Input |
HDMI, USB Type-C(DP1.2)*1 |

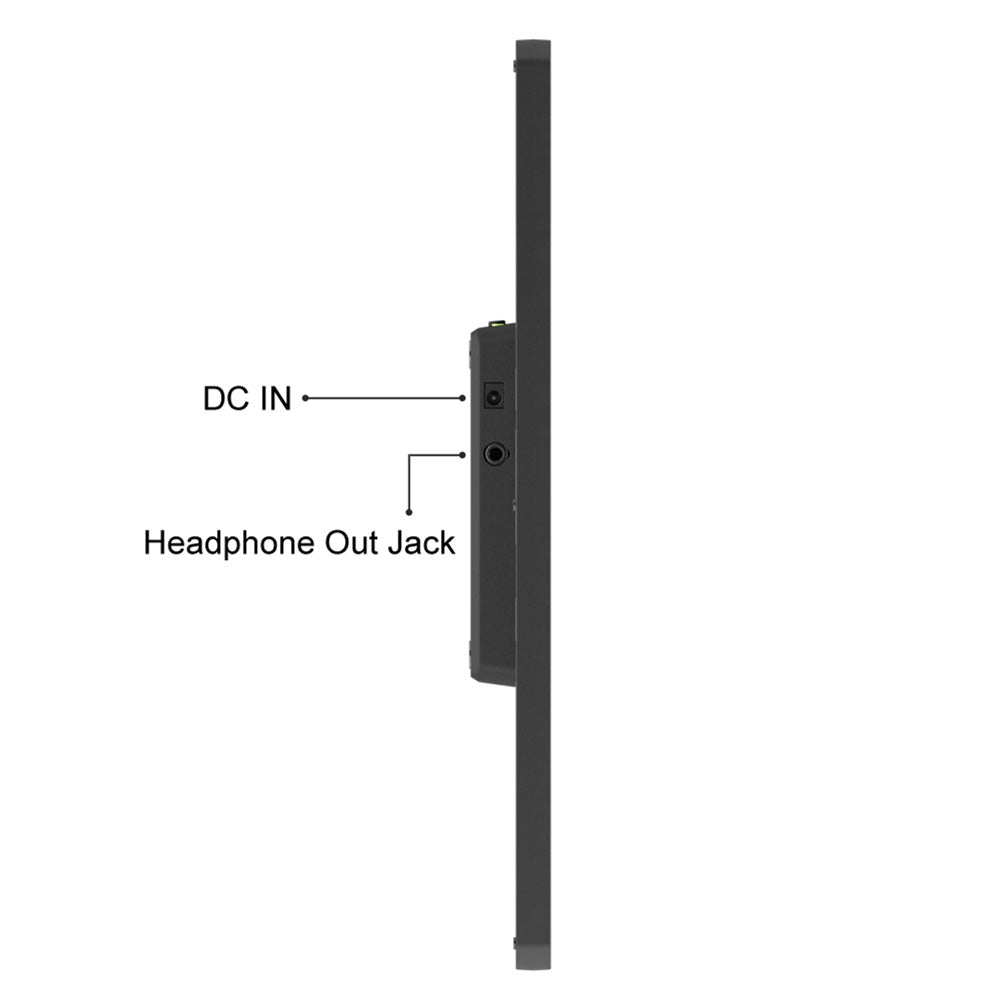

| DC Input |
DC Jack(3.5mm*1.35mm)*1; Support 12V DC-Input
|

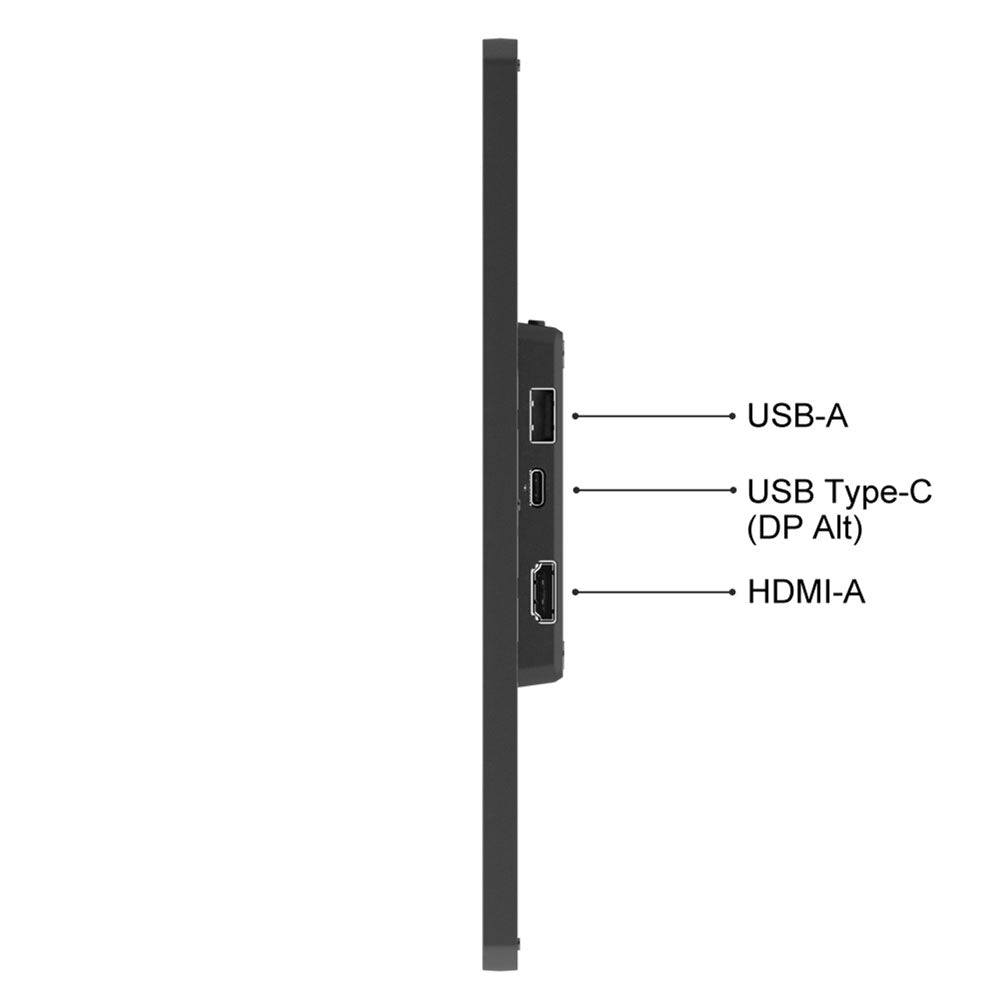

| Connectivity |
USB Type-C*1 (DP1.2 video input)(Power Delivery：5V DC input)(USB 2.0) USB-A(USB 2.0)*1 |
| Weight and Dimensions |
1200g(monitor), 364.5mm*232.5mm*19.9mm |

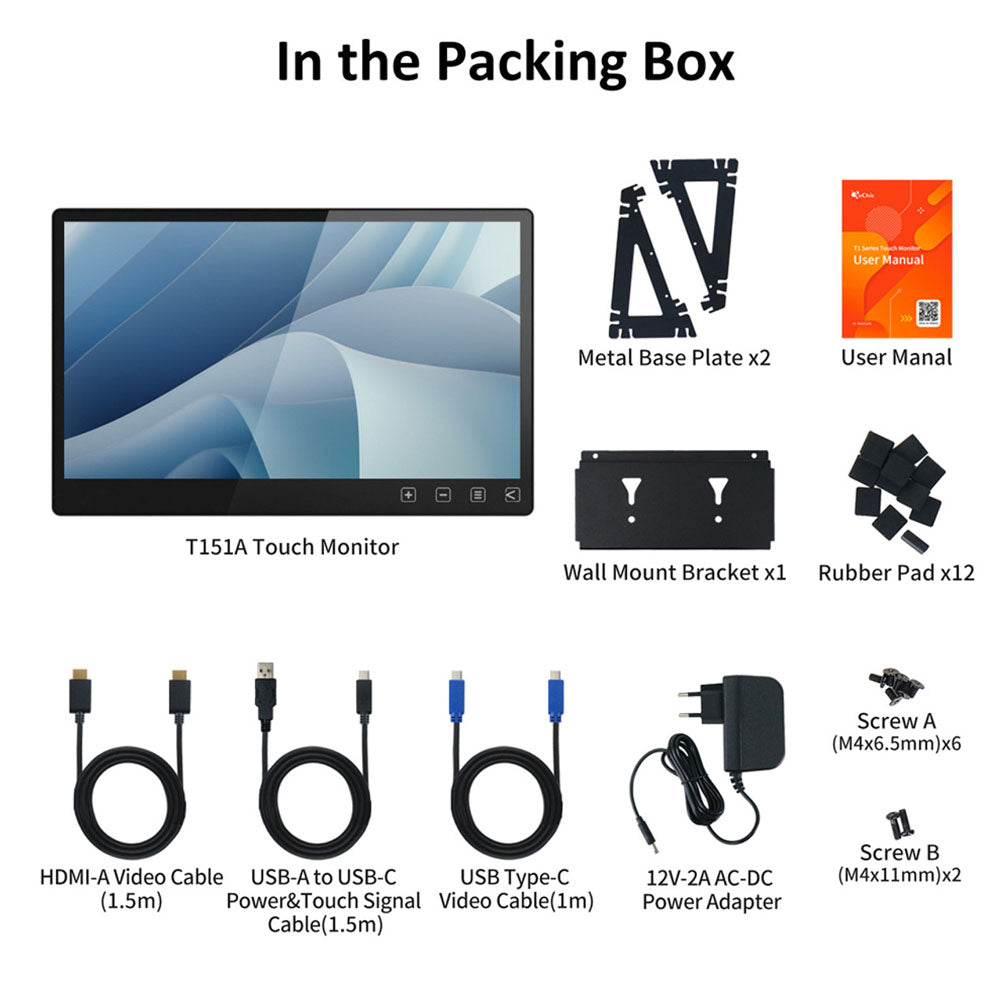

HDMI-A Video Cable(1.5m)*1
USB-A to USB-C Power and Touch Signal Cable(1.5m)*1
USB Type-C Video Cable(1m)*1
12V-2A AC-DC Power Adapter*1

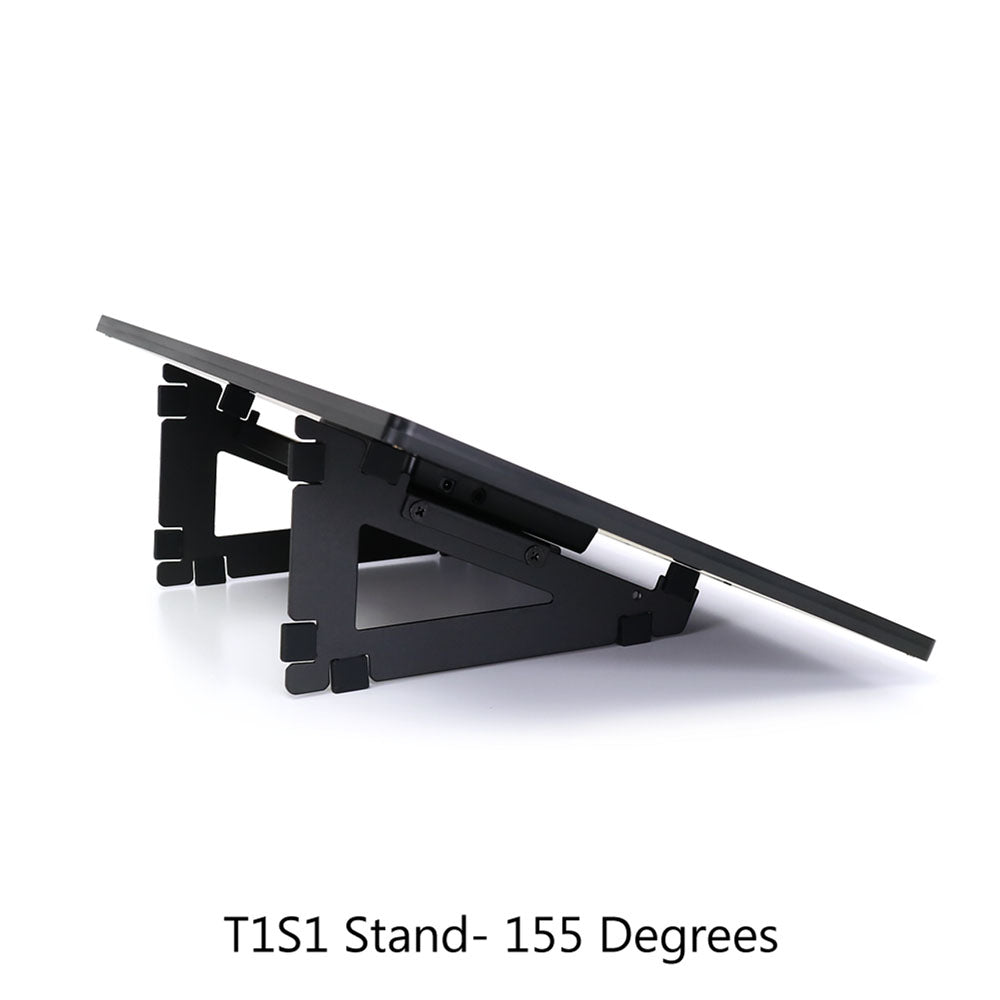

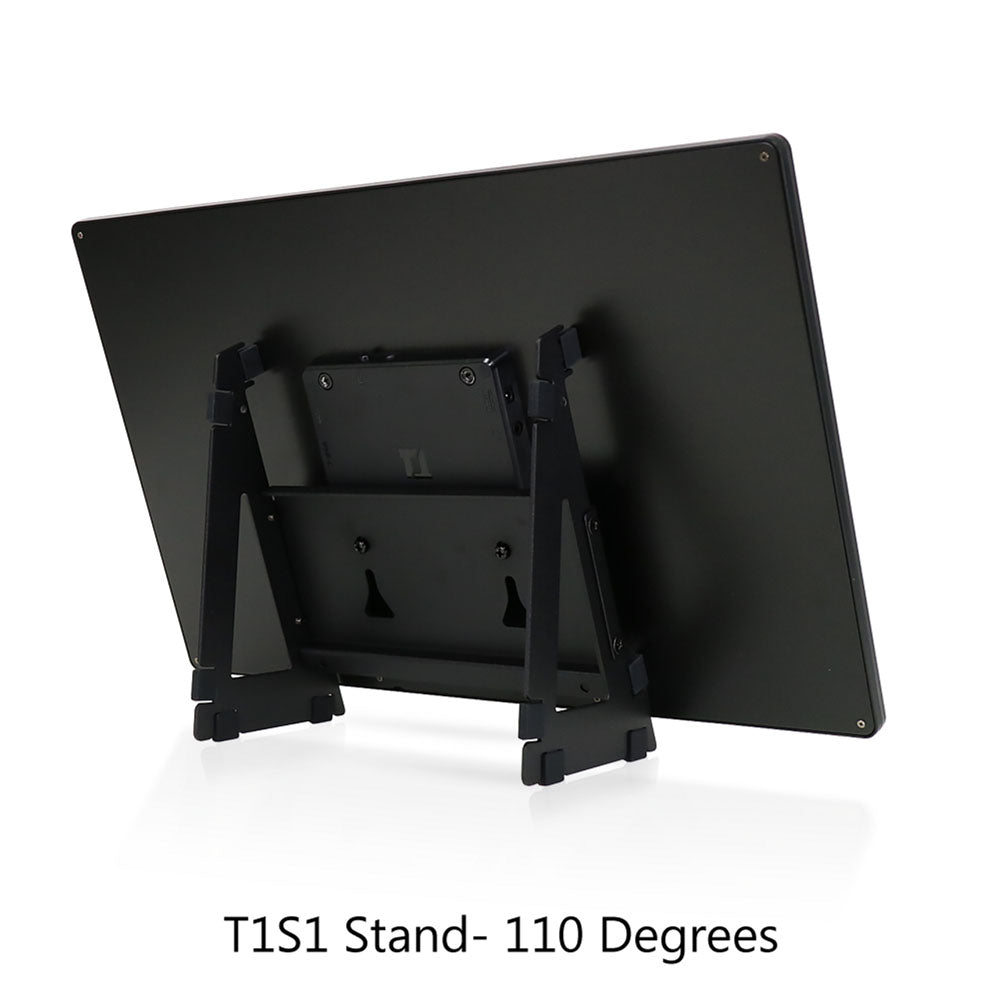

Monitor Stand(T1S1)：Wall-mount plate*1; Stand plate*2;
A Screw(M4x6.5mm)*6; B Screw(M4x11mm)*2; Rubber*12
