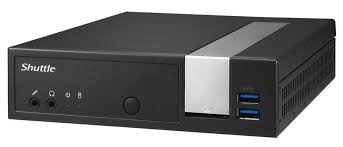

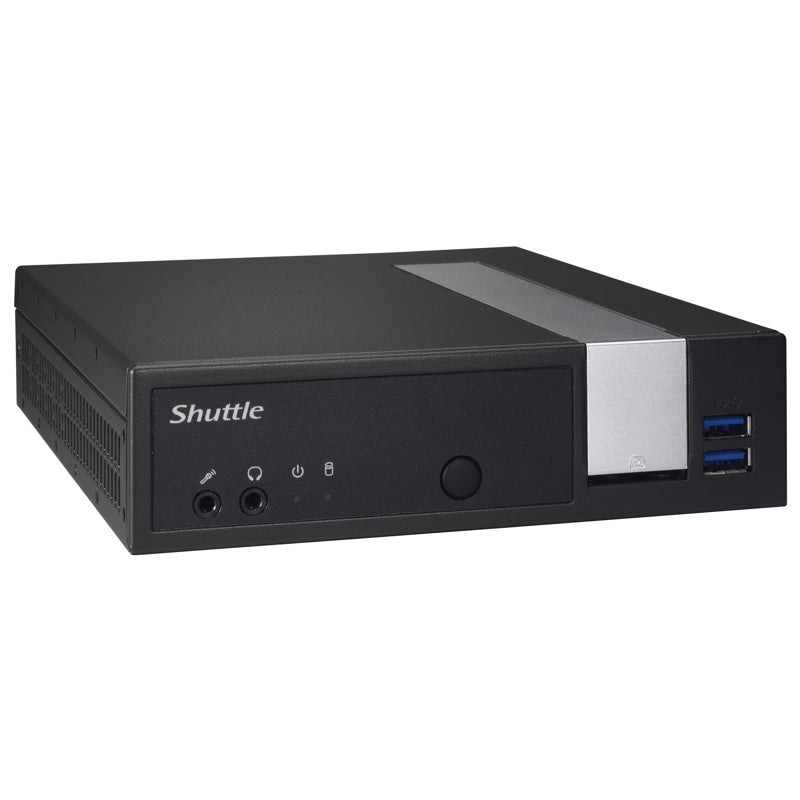

Shuttle provides the all-new slim model DX30 and powered by an Intel® Celeron® J3355 processor. The DX30 runs a mere 40 watt adapter and integrates the latest Intel® Apollo Lake SoC 14nm CPU processor. It is capable to deliver 4K/UHD with Intel® integrated graphics GPU engine, made it perfect for digital signage and Kiosk. In order to meet the diverse needs of industrial commercial applications, the DX30 includes a wealth of I / O and high-speed storage interfaces, including USB 2.0, USB 3.0, M.2, PS/2, COM ports, and SATA 6Gbps to meet various of customer’s requirements. Also, the DX30 has built-in one DisplayPort and one HDMI as well as one optional VGA (XPC accessory PVG01) ports to support up to three independent displays. Its VESA compliant chassis fills a mere 1.3 liter and measures 43mm thick for easy integration in any places with limited space. The DX30 is certified continuous 24/7 operation and uses a fan-less cooling design, making it a very silent and stable machine for long-term operation.
TECHNICAL SPECIFICATIONS:
Form Factor:
1.3L slim form factor
Processor:
Intel Apollo Lake J3355 CPU Processor
Memory:
2 x DDR3L SO-DIMM, supports up to 8GB DDR3L 1866 MHz
Video Output:
Intel generation HD Graphic engine
Audio:
Realtek ALC662
2 channel High Definition Audio
Ethernet:
Intel i211 Gigabit LAN controller
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature
802.11b/g/n WLAN support (1T1R)
Storage Interface:
SATA for HDD/SSD
SD card reader

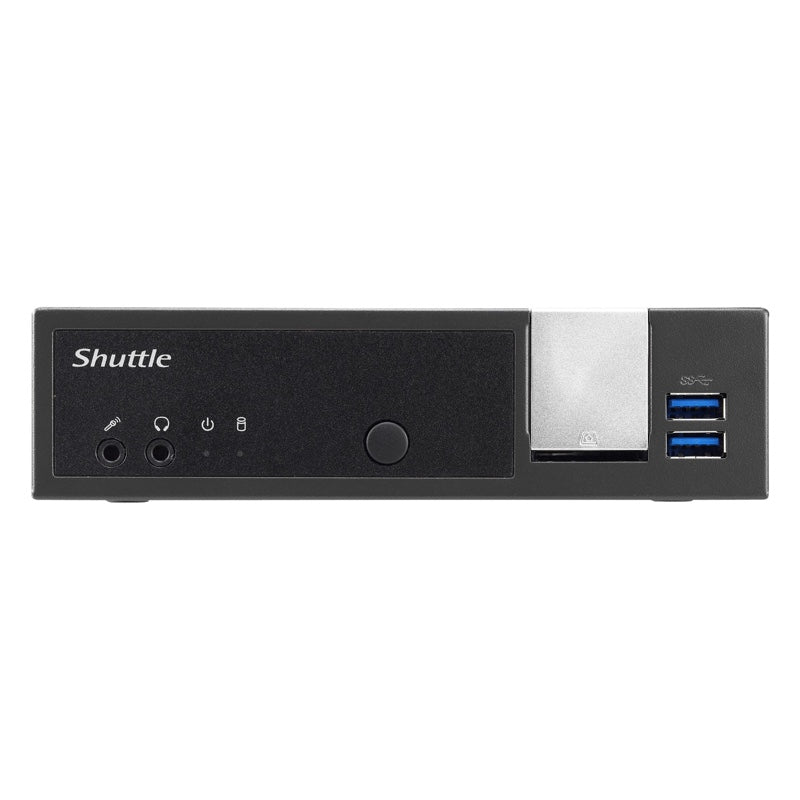

Front Panel:
(1) Power button
(1) Power Led
(1) HD Led
(1) SD Card reader
(2) USB 3.0 port
(1) MIC-IN
(1) Audio out

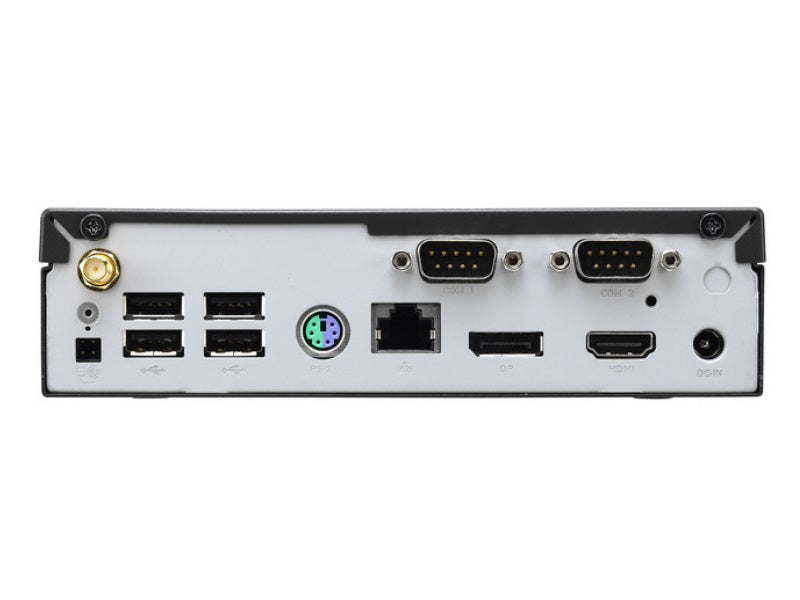

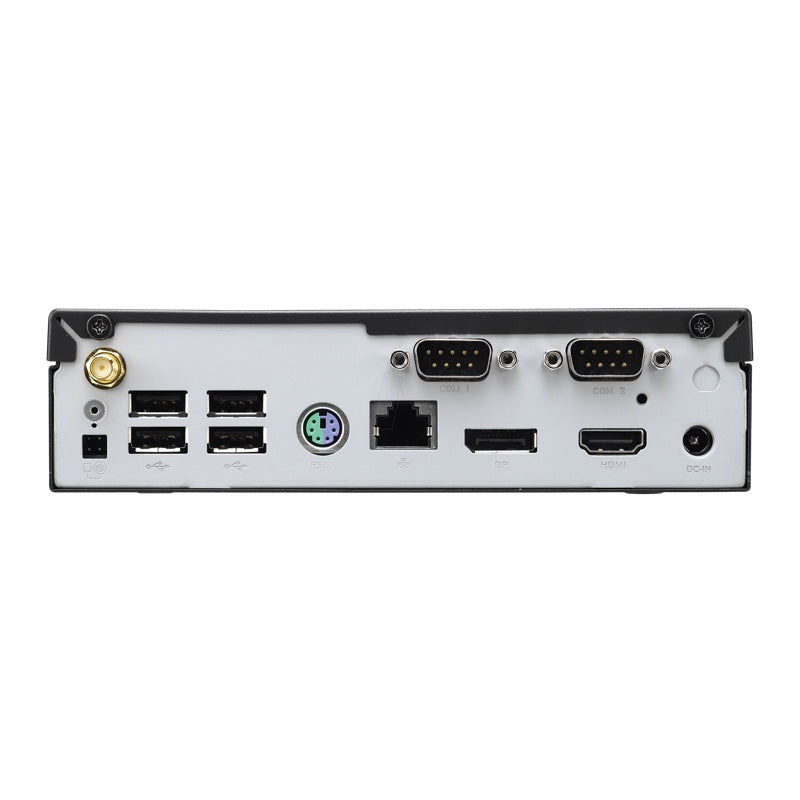

Back Panel:
(1) RJ45 Gigabit LAN port
(1) HDMI port
(1) Display port
(4) USB 2.0 ports
(1) DC in
(1) RS232/RS422/RS485
(1) RS232
(1) External power on/Clear CMOS header
(1) PS/2 Port
(1) Connectors for WLAN antenna
Drive Bays:

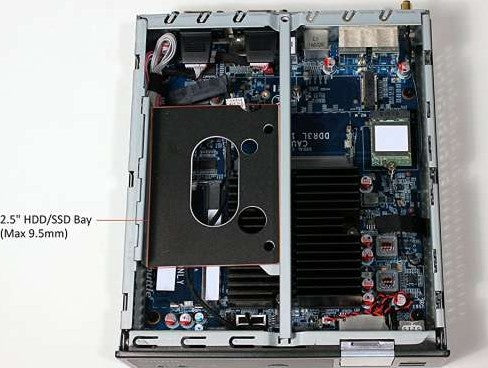

(1) 2.5" HDD Max.(9.5mm) / SSD bay
Dimensions:
190(L) x 165(W) x 43(H) mm
Power:
Input:100- 240V AC
Output: 19V/2.1A or 12V/3.33A DC
40W 19V Adapter bundled
Accessories:
" Optional " PVG01 (VGA output)
Expansion Slot:
(1) M.2 Type M (2280)
(1) M.2 Type A/E (2230)
OS Support:
Windows 10 64 bit O.S
Ubuntu Linux O.S
